Type	Output		Full Load				NoisedB(A)	Vibration(mm/s)	LRT	BDT	LRA	weight(kg)
Type	(kw)	(HP)	Current(A)	Speed（r/min）	Eff（%）	P.F. (Cosφ)	NoisedB(A)	Vibration(mm/s)	RLT	RLT	RLA	weight(kg)
Synchronous Speed3000r/min(2p)
1E3-63M1-2	0.18	0.25	0.52	2740	65.9	0.8	61	2.8	2.3	2.2	7	5
IE3-63M2-2	0.25	0.35	0.67	2740	69.7	0.81	61					5
1E3-71M1-2	0.37	0.5	0.94	2900	73.8	0.81	64					6
1E3-71M2-2	0.55	0.75	1.31	2900	77.8	0.82	64			2.3		7
1E3-80M1-2	0.75	1	1.72	2870	80.7	0.82	62					9
1E3-80M2-2	1.1	1.5	2.43	2870	82.7	0.83	62		2.2		7.6	10
1E3-90S-2	1.5	2	3.22	2880	84.2	0.84	67				7.9	12
1E3-90L-2	2.2	3	4.58	2880	85.9	0.85	67				7.9	14
1E3-100L-2	3	4	6	2880	87.1	0.87	74				8.5	21
IE3-112M-2	4	5.5	7.8	2800	88.1	0.88	77					28
1E3-132S1-2	5.5	7.5	10.6		89.2	0.88	79		2			39
1E3-132S2-2	7.5	10	14.4		90.1	0.88	79		2			45
Synchronous Speed1500rmin(4P)
IE3-63M1-4	0.12	0.18	0.39	1380	64.8	0.72	52	2.8	2.1	2.2	6.6	5
IE3-63M2-4	0.18	0.25	0.54	1380	69.9	0.73	52					5
IE3-71M1-4	0.25	0.35	0.7	1390	73.5	0.74	55					6
IE3-71M2-4	0.37	0.5	0.97	1390	77.3	0.75	55					6
1E3-80M1-4	0.55	0.75	1.38	1420	80.8	0.75	56		2.2	2.3		9
IE3-80M2-4	0.75	1	1.84	1420	82.5	0.75	56		2.3			11
IE3-90S-4	1.1	1.5	2.61	1430	84.1	0.76	59				6.8	12
IE3-90L-4	1.5	2	3.47	1430	85.3	0.77	59				7	14
1E3-100L1-4	2.2	3	4.76	1440	86.7	0.81	64				7.6	21
1E3-100L2-4	3	4	6.3	1440	87.7	0.82	64				7.6	24
IE3-112M-4	4	5.5	8.4	1450	88.6	0.82	65		2.2		7.8	30
1E3-132S-4	5.5	7.5	11.2	1455	89.6	0.83	71		2		7.9	41
IE3-132M-4	7.5	10	15	1455	90.4	0.84	71		2		7.5	48
Synchronous Speed1000r/min(6P)
1E3-71M1-6	0.18	0.25	0.65	910	63.9	0.66	52	2.8	1.9	2	6	6
1E3-71M2-6	0.25	0.37	0.81	910	68.6	0.68	52					6
1E3-80M1-6	0.37	0.5	1.09	920	73.5	0.7	54					9
1E3-80M2-6	0.55	0.75	1.5	920	77.2	0.72	54			2.1		10
1E3-90S-6	0.75	1	2.03	935	78.9	0.71	57					12
1E3-90L-6	1.1	1.5	2.83	935	81	0.73	57					14
1E3-100L-6	1.5	2	3.78	950	82.5	0.73	61				6.5	23
1E3-112M-6	2.2	3	5.4	960	84.3	0.74	65				6.6	28
1E3-132S-6	3	4	7.2	970	85.6	0.74	69				6.8	40
1E3-132M1-6	4	5.5	9.5		86.8	0.74					6.8	43
1E3-132M2-6	5.5	7.5	12.7		88	0.75					7	47
Synchronous Speed1000r/min(6P)
1E3-80M1-8	0.18	0.25	0.76	665	58.7	0.61	52	2.8	1.8	1.9	5.2	9
1E3-80M2-8	0.25	0.35	0.97	665	64.1	0.61	52				5.7	10
1E3-90S-8	0.37	0.5	1.33	685	69.3	0.61	56				6.2	12
1E3-90L-8	0.55	0.75	1.88	685	73	0.61	56			2	5.9	14
1E3-100L1-8	0.75	1	2.27	700	75	0.67	59				6.2	23
1E3-100L2-8	1.1	1.5	3.12		77.7	0.69	59				6.2	25
1E3-112M-8	1.5	2	4.09		79.7	0.7	61				6.7	28
1E3-132S-8	2.2	3	5.7	715	81.9	0.71	64				6.7	40
1E3-132M-8	3	4	7.5	715	83.5	0.73	64				6.9	45

久久欧美亚洲另类专区91大神,国产精品禁18久久久久久,国产精品久久久久久久成人午夜,天天干在线免费视频,av中文字幕网址,中文字幕免费专区,国产精品久久久久久久久久久不卡

Jiawo Electromechanical series

A manufacturer and exporter specializing in the production of high pressure cleaning machines and motors.

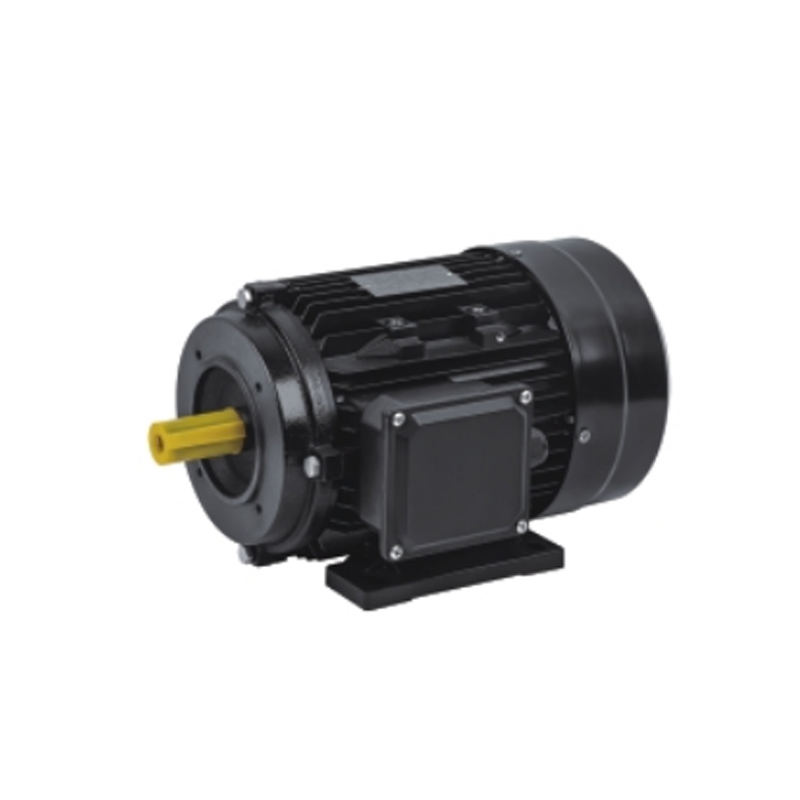

Aluminium housing series three phase asynchronous motor

Product description
